Pofessional solution for industrial remote control
7 Years
| Ask Lasest Price | |
| Brand Name : | Uting Telecontrol |
| Model Number : | F21-4D |
| Certification : | FCC,CE, Explosion Proof |
| Price : | USD57-72 |
| Payment Terms : | TT, Western Union, Paypal |
| Supply Ability : | 5000pcs per week |
| Delivery Time : | 3-5 days |

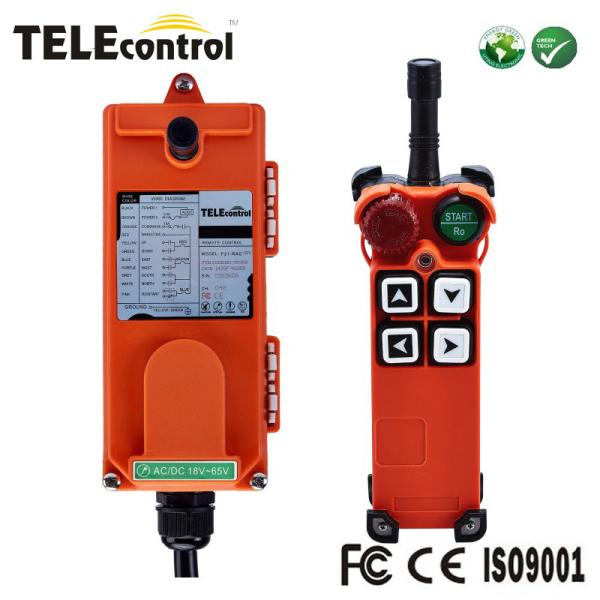

1. With 5 function buttons (4 double speed and 1 single speed) + E-stop + Rotary key switch.
2. Control contact is up to 8.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. Up/down, east/west, can be programmed to interlock or non-interlock, toggle or normal etc.
7. Start button can be program to be start, normal, toggle function etc.
| Frequency range | VHF: 310~331MHz; UHF: 425~446MHz |
| Safety code | 32 bits (4.3 billion) |
| Transmitted power | ≤10dBm |
| Receiver sensitivity | -110dBm |
| Safety code | 32 bits (4.3 billion) |
| Transmitter power supply | 2 AA batteries |
| Receiver power supply | 18~65VAC/DC,65~440VAC/DC(optional) |
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) |
| Cable lengtht | 1.65 meters |
| Control distance | Approx100m(200 meters is customized) |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Temperature range | -40℃~+85℃ |
| Transmitter Dimension | 156 x 61 x 51mm |
| Transmitter Weight | 255g(without batteries) |
| Receiver Dimension | 205x86x80mm |
| Receiver Weight | 620g |
Certifications
FCC
CE
Explosion Proof
Application
Crane Remote Control are used for tower cranes, overhead cranes,
concrete pumps, concrete mixers, shipyard, etc., for industrial,
agricultural, clean, drainage and other industries.
1. Overhead Crane Remote Control
Overhead crane is one of the most widely used areas of industrial
overhead crane radio remote control systems. In particular, in
metallurgy, automobile manufacturing, paper mills and material
warehouses, are all equipped with industrial overhead crane radio
remote control systems.
2. Mobile crane, truck crane wireless radio remote control system
Typically, the large car crane remote control system is also
equipped with a data feedback device, the feedback device can be
displayed on the operating system display system, the operator can
monitor the data according to the display.
3. Concrete pump truck wireless radio remote control system
The traditional mode of concrete pump operation to be completed
with the number of people, low efficiency, limiting the performance
of concrete pump truck to play. The use of industrial remote
control device can maximize the machine's performance. The driver
locates the truck, then carry the remote control system to operate
concrete pump truck.
4. Mining machinery
Mine visibility is low. With remote control systems, greatly
increased the safety of operation, comfort and accuracy, saving
investment and improve efficiency.
5. Crawler slag loader
The use of industrial remote control device, without changing the
existing manual mode of operation to achieve the purpose of
unmanned to complete the slag operation. The Eliminating the harsh
environment, the unclear line of sight, the hidden dangers from
high temperature. Improve the efficiency of cleaning operations,
improve the working environment of metallurgical workers and reduce
the labor intensity of workers.
| Packaging | |
| Size | 325 (L) * 205 (W) * 165 (D)mm |
| Weight | 3KG (1 PCS) |
Packaging Details | One sets is packaged in one strong carton. The normal package is cartons. If export to other countries, we use pallet.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
|
